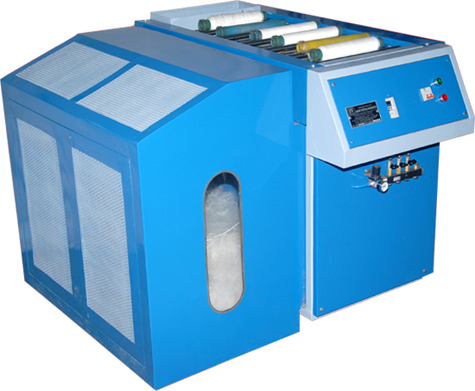

Roving Stripping & Opening Machine (6 Bobbin Pneumetic)

Back to Product

The evacuated rovings are thoroughly opened by applying compressed air current as a medium. This ensures that there is no physical damage to the fibre and bobbin as well. The roving can be effectively used as fresh raw material without affecting yarn quality. The operation is more scientific and requires less labour.

FEATURES
          Fully contained unit with stripping of the roving bobbins and opening of the fibre.
          Variable unwinding speed to suit various material and twist parameters.
          Simple operation and occupies less space.

ADVANTAGES
        No physical damage to the Roving Bobbins.
        Gentle handling of the fibre
        Less labour and highly productive.
        Saving of the valuable raw material.
        Very short payback considering the savings in labour and utilisation of the raw material







TECHNICAL DATA

NO OF BOBBIN                     :6/ LODING
PRODUCTION CAPACITY   :12  KGS / HOUR APPROXY
POWER REQUIREMENTS   :220 V AC , 1 PHASE 50 Hz  0.50 HP
COMPRESSED AIR

:CLEAN & DRY @ 5 TO 8 BAR 150–250 LPM

DIMENSION

:L 1500MM X W 1300MM X  H 11OOMM

* Technical details in this page are subject to change without prior notice
